SIL-FOS 5Play
  • 95060

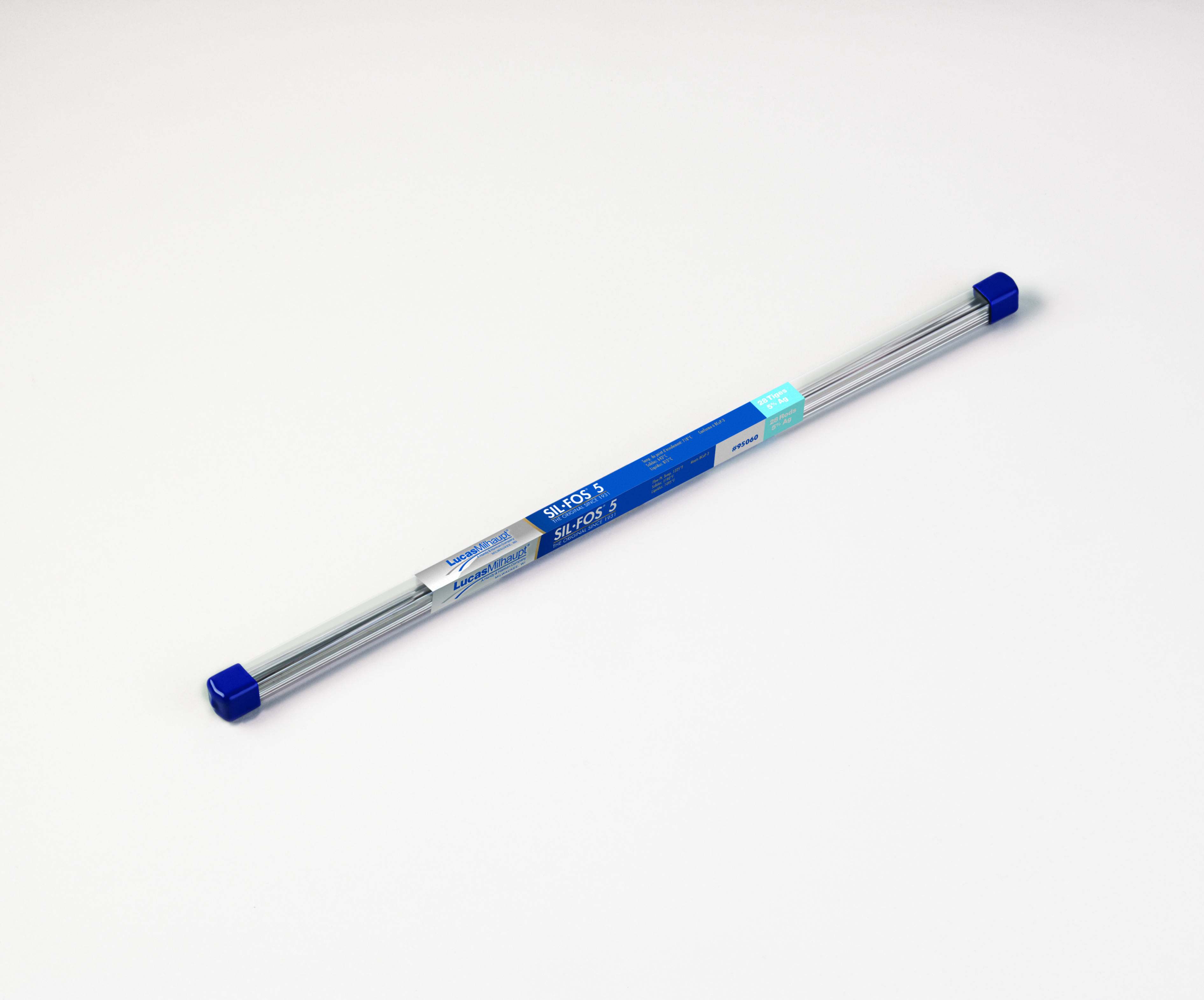

SIL-FOS 5

Product Overview

Sil-Fos 5 is an alloy for copper-copper brazing, specifically appropriate for filling gaps, forming fillets. No flux required due to phosphorous in the Sil-Fos family.
  • Joins CU to CU (phosphorus serves as flux)
  • Joins CU to Brass (flux is recommended)
  • Designed for applications where close fit-ups cannot be maintained
  • Slow Flow
  • Made in USA
Industry Applications:
HVAC/R Refrigerant systems, air conditioning coils, evaporator coils

Product Specifications

Name:SIL-FOS 5
Nominal Composition:Silver 5.00, Copper 89.00, Phosphorous 6.00,
Ag
5.00
Cu
89.00
P
6.00
Liquidus:1495 °F, 813 °C
Solidus:1190 °F, 643 °C
AWS:AWS: BCuP-3

Related Parts

Product NameDimensionsCase QuantityOEM FormsOEM Range
32299.050"x.125"x5' length coil6/boxWireDiameter
32302.050"x.125"x22' length coil5/boxWireDiameter
95060.125"x.050"x20" : 28 rods25 lbsStripThick x Width
95071.125"x.050"x20" : bulk25 lbsWireDiameter

Related Industries

.

HVACR

Lucas Milhaupt offers the best brazing alloys, soldering products, and HVAC/R brazing equipment on the market. Learn how we help HVAC OEMs & Service Technicians improve their brazing process.
