SILVALOY 505Play
  • 98072

SILVALOY 505

Product Overview

Silvaloy 505 is the best general purpose filler metal available. Silvaloy 505 primarily joins nickel and iron base alloys, but it can also join other non-ferrous metals. Due to its nickel content, it is excellent at preventing interface corrosion on stainless steel as well as promoting wetting on more difficult to wet base metals. The alloy is very fluid and can fill long, narrow joints.
  • Nickel content enhances wetting
  • Very fluid at brazing temperature
  • Blocks interface corrosion on stainless steel
  • Cadmium free
  • Made in USA
Industry Applications:

Food equipment, cutting tools, automotive

Talk to an ExpertWhere to Buy

Product Specifications

Name:SILVALOY 505
Nominal Composition:Silver 50.00, Copper 20.00, Zinc 28.00, Nickel 2.00,
Ag
50.00
Cu
20.00
Zn
28.00
Ni
2.00
Liquidus:1305 °F, 705 °C
Solidus:1220 °F, 660 °C
AWS:AMS: 4788, AWS: BAg-24

Related Parts

Product NameDimensionsCase QuantityOEM FormsOEM Range
980503/32" (2.4mm) Dia x 50 Troy Oz Knock-out Box1/BoxWireDiameter
980511/16" (1.6mm) Dia x 50 Troy Oz Knock-out Box1/BoxWireDiameter
980531/32" (0.8mm) Dia x 50 Troy Oz Knock-out Box1/BoxWireDiameter
980701/16" (1.6mm) Dia x 1 Troy Oz Clam Shell6/BoxWireDiameter

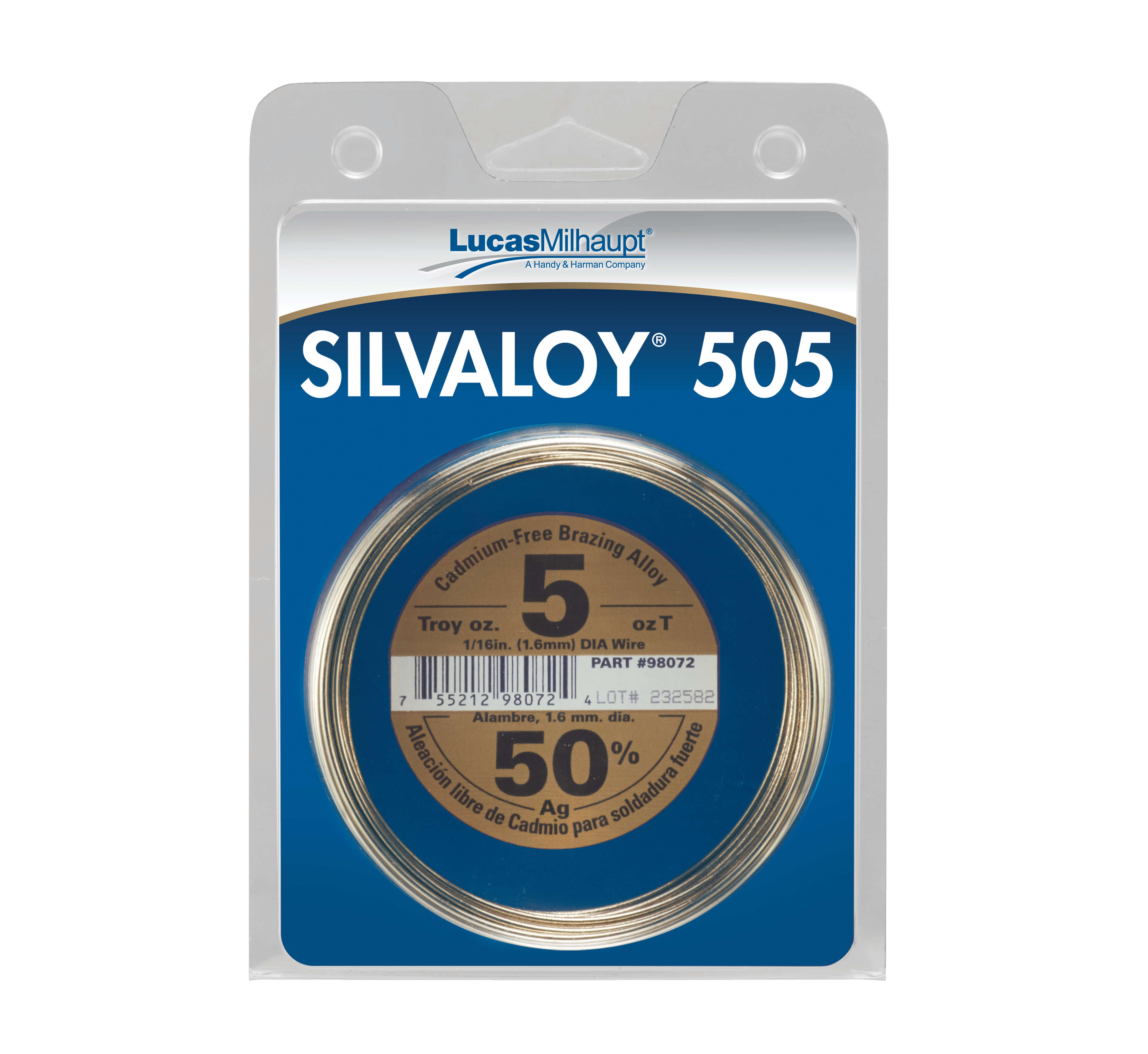

980721/16" (1.6mm) Dia x 5 Troy Oz Clam Shell6/BoxWireDiameter
