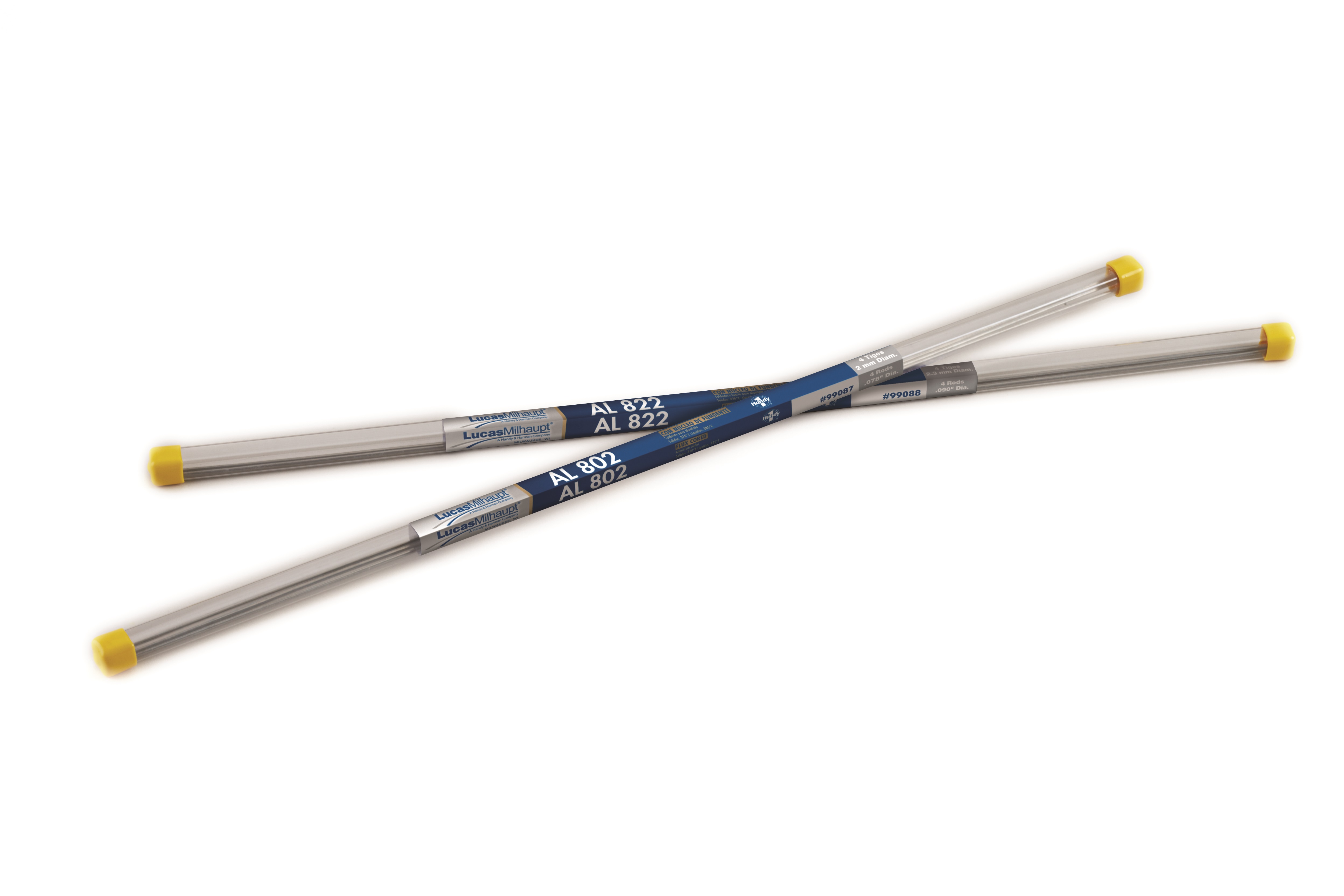

AL 802

Product Overview

AL 802 is a high temperature aluminum-zinc solder meant to join aluminum components, though it can also be used to join aluminum to copper. Due to its narrow melt range, AL 802 flows freely and is best suited for joints with good fit up or joints where overheating of the aluminum is a concern. Due to the zinc content, AL 802 exhibits lower corrosion resistance than aluminum-silicon filler metals such as AL 718.
  • Very fluid
  • Low temperature
Industry Applications:

HVAC, heat exchanger transition joints

Talk to an Expert

Product Specifications

Name:AL 802
Nominal Composition:Aluminum 2.00, Zinc 98.00,
Al
2.00
Zn
98.00
Liquidus:725 °F, 385 °C
Solidus:710 °F, 377 °C

Related Industries

.

HVACR

Lucas Milhaupt offers the best brazing alloys, soldering products, and HVAC/R brazing equipment on the market. Learn how we help HVAC OEMs & Service Technicians improve their brazing process.
