AL 822Play
  • AL822

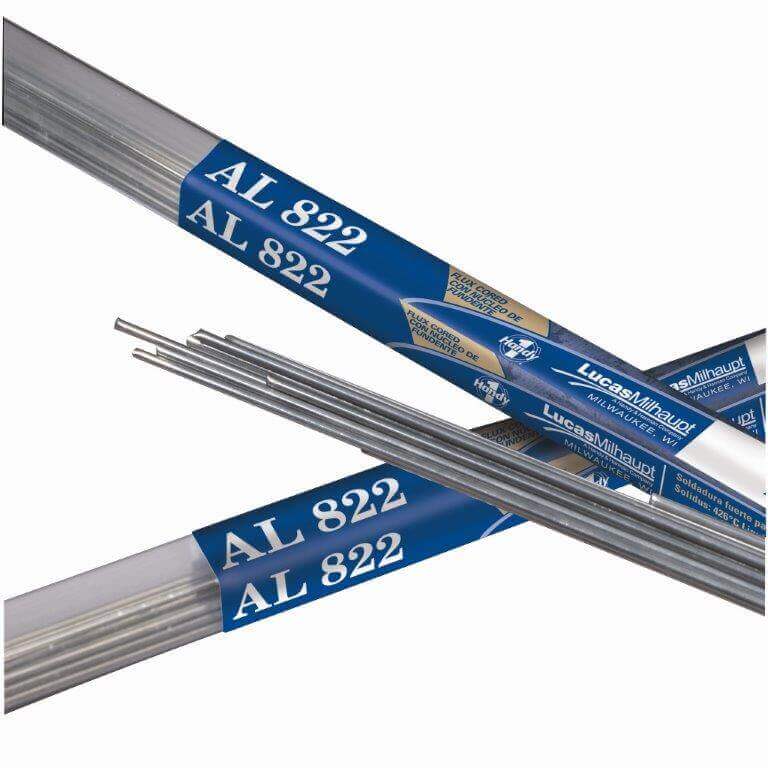

AL 822

Product Overview

AL 822 is a low temperature alloy ideal for brazing or soldering aluminum to aluminum or aluminum to copper. Non corrosive flux does not require removal after brazing. It is ideal for open air heating methods and very easy to use for aluminum brazing in HVAC/R applications.
  • Joins AL to AL
  • Joins AL to CU
  • Flux cored
  • Low temperature braze
  • High strength braze
  • Ideal HVAC brazing rod for making repairs
Industry Applications:

HVAC solder or braze

HVAC and refrigeration repair work, patching holes in aluminum coils in automotive units.





Talk to an ExpertWhere to Buy

Product Specifications

Name:AL 822
Nominal Composition:Zinc 78.00, Aluminum 22.00,
ZN
78.00
AL
22.00
Liquidus:900 °F, 482 °C
Solidus:800 °F, 427 °C

Related Parts

Product NameDimensionsCase QuantityOEM FormsOEM Range
99088.090" DIA X 20" X 4 Sticks20/box
