HANDY-FLO 6Play
  • 95120

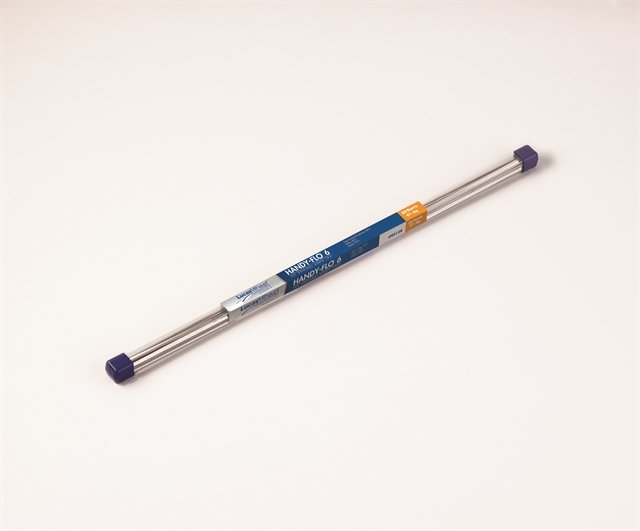

HANDY-FLO 6

Product Overview

Handy-Flo 6 is a silver-copper-phosphorus alloy used for brazing copper to copper or copper to copper alloys, most often in the HVAC industry. It should not be used on ferrous or nickel base materials due to the brittle intermetallic that forms. The phosphorus in the Handy-Flo 6 serves as a fluxing agent, so the alloy does not require flux for copper to copper joints. Flux is recommended for copper to brass joints.
  • Joins CU to CU (phosphorus serves as flux)
  • Joins CU to Brass (flux is recommended)
  • Melts & flows at temperatures very close to 15% Ag
  • Slow flow
  • Made in USA
Industry Applications:

HVAC/R refrigerant systems, air conditioning coils, evaporator coils

Talk to an ExpertWhere to Buy

Product Specifications

Name:HANDY-FLO 6
Nominal Composition:Silver 6.00, Copper 88.00, Phosphorous 6.00,
Ag
6.00
Cu
88.00
P
6.00
Liquidus:1460 °F, 795 °C
Solidus:1190 °F, 645 °C

Related Parts

Product NameDimensionsCase QuantityOEM FormsOEM Range
95120.125"x.050"x20" : 28 rods25 lbsStripThick x Width
95131.125"x.050"x20" : bulk25 lbsWireDiameter

Related Industries

.

HVACR

Lucas Milhaupt offers the best brazing alloys, soldering products, and HVAC/R brazing equipment on the market. Learn how we help HVAC OEMs & Service Technicians improve their brazing process.
