SIL-FOS 15Play
  • Sil-Fos 15

SIL-FOS 15

Product Overview

Sil-Fos 15 is the preferred alloy for general copper-copper brazing; the phosphorous in the Sil-Fos family serves as a fluxing agent on copper, so no flux is recommended. Sil-Fos 15 can be used with joints where fit up is marginal and is well suited for use in refrigeration applications.
  • Joins CU to CU (phosphorus serves as flux)
  • Joins CU to Brass (flux is recommended)
  • Highest joint ductility of entire Sil-Fos family
  • Allows for fillet build up
  • Slow flow but penetrates well into long shear depths
  • Made in USA
Industry Applications:

HVAC brazing

HVAC/R refrigerant systems, air conditioning coils, evaporator coils.



Talk to an ExpertWhere to Buy

Product Specifications

Name:SIL-FOS 15
Nominal Composition:Silver 15.00, Copper 80.00, Phosphorous 5.00,
Ag
15.00
Cu
80.00
P
5.00
Liquidus:1475 °F, 802 °C
Solidus:1190 °F, 643 °C
AWS:AWS:BCuP-5

Related Parts

Product NameDimensionsCase QuantityOEM FormsOEM Range
32181.050 x .125 x 5ft length coil6/box
32183.050 x .125 x 22ft length coil5/boxWireDiameter X Length

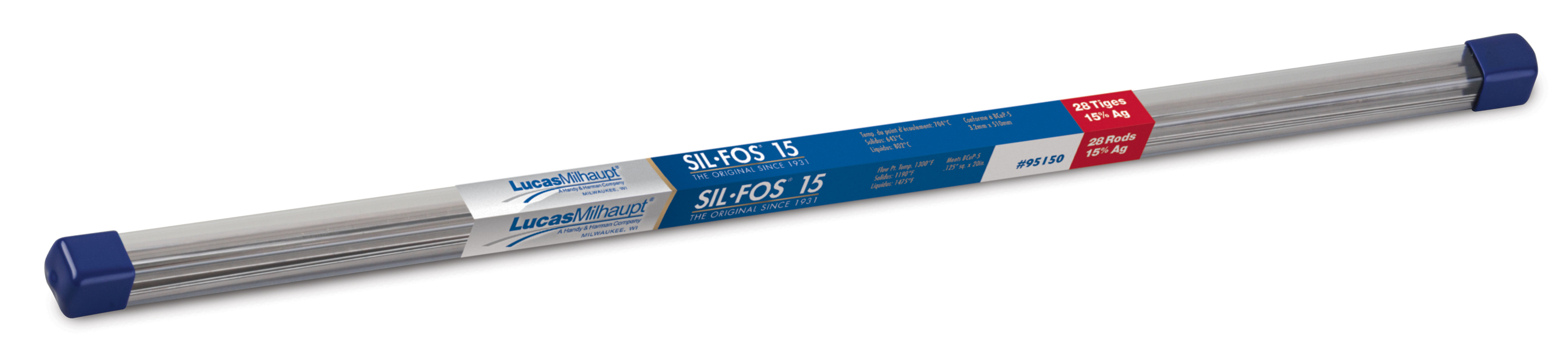

95150.125 x .050 x 20: 28 rods25 lbsStripthick x width
1202082.125 sq x 3625 lbsShimThick x Width x Length
95158.094 dia x 3625 lbsSlugDiameter x Length
95161.125 x .050 x 20: bulk25 lbs.WireDiameter
1202092.125" sq. x 20: 11 rods in plastic tube25/boxRingsID
95177.125 x .050 x 20: 7 rods20/boxWashersID x OD
