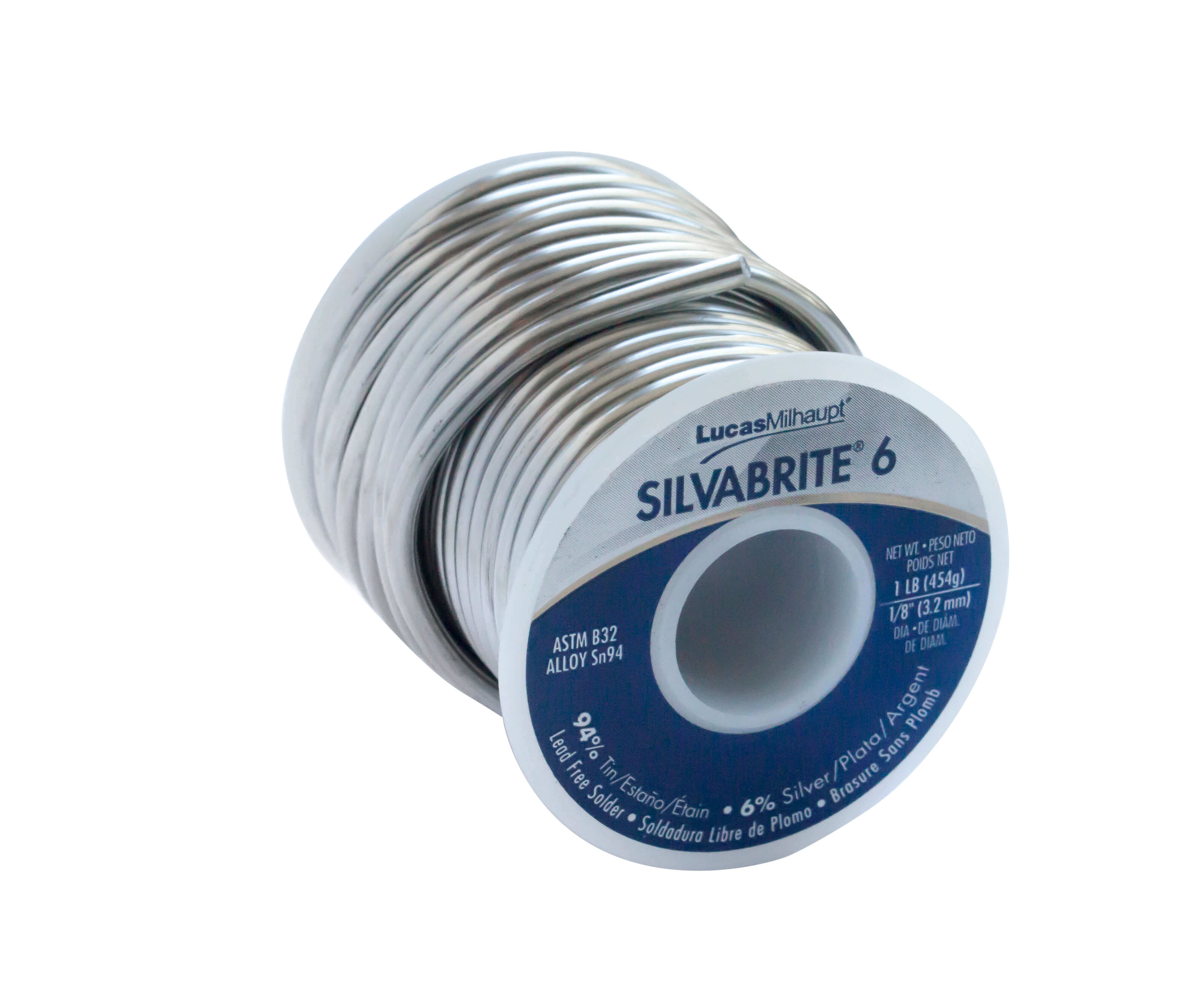

SILVABRITE 6

Product Overview

Silvabrite 6 is a tin-silver solder used for applications where a slightly more sluggish flow is required as compared to the standard Silvabrite, e.g. wide clearances. Silvabrite 6 can be used to join both ferrous and non-ferrous metals, and is often used for Cu-Cu water lines.
  • Lead free
  • High strength soft solder
  • Higher silver content than normal Silvabrite and more restrictive flow
  • Good color match to stainless steel
  • Made in  USA
Industry Applications:

Refrigeration, HVAC (low pressure side)

Talk to an ExpertWhere to Buy

Product Specifications

Name:SILVABRITE 6
Nominal Composition:Silver 5.60, Tin 94.40,
Ag
5.60
Sn
94.40
Liquidus:536 °F, 280 °C
Solidus:430 °F, 221 °C
AWS:ASTM: B32 Sn94

Related Parts

Product NameDimensionsCase QuantityOEM FormsOEM Range
960101/8" Dia 1lb spool25 lbDiameter
