SILVALOY 401Play

SILVALOY 401

Product Overview

Silvaloy 401 is a general purpose, intermediate temperature brazing for use on many ferrous and non-ferrous alloys including Monel and nickel. Silvaloy 401 is cadmium free and can be used as a substitute for Easy-Flo 30. Silvaloy 401 does have a wide melt range and can bridge larger gaps well, though it does not have the same corrosion resistance as its nickel and tin bearing counterparts.
  • A more economical filler metal with a fairly narrow melt range
  • Cadmium-free
  • Can bridge gaps well
  • Intermediate temperature filler metal
  • Made in USA
Industry Applications:
Ferrous and non-ferrous alloys, food handling equipment, refrigeration tubing
Talk to an ExpertWhere to Buy

Product Specifications

Name:SILVALOY 401
Nominal Composition:Silver 40.00, Copper 30.00, Zinc 30.00,
Ag
40.00
Cu
30.00
Zn
30.00
Liquidus:1340 °F, 725 °C
Solidus:1245 °F, 675 °C
AWS:AMS : 4762

Related Parts

Product NameDimensionsCase QuantityOEM FormsOEM Range

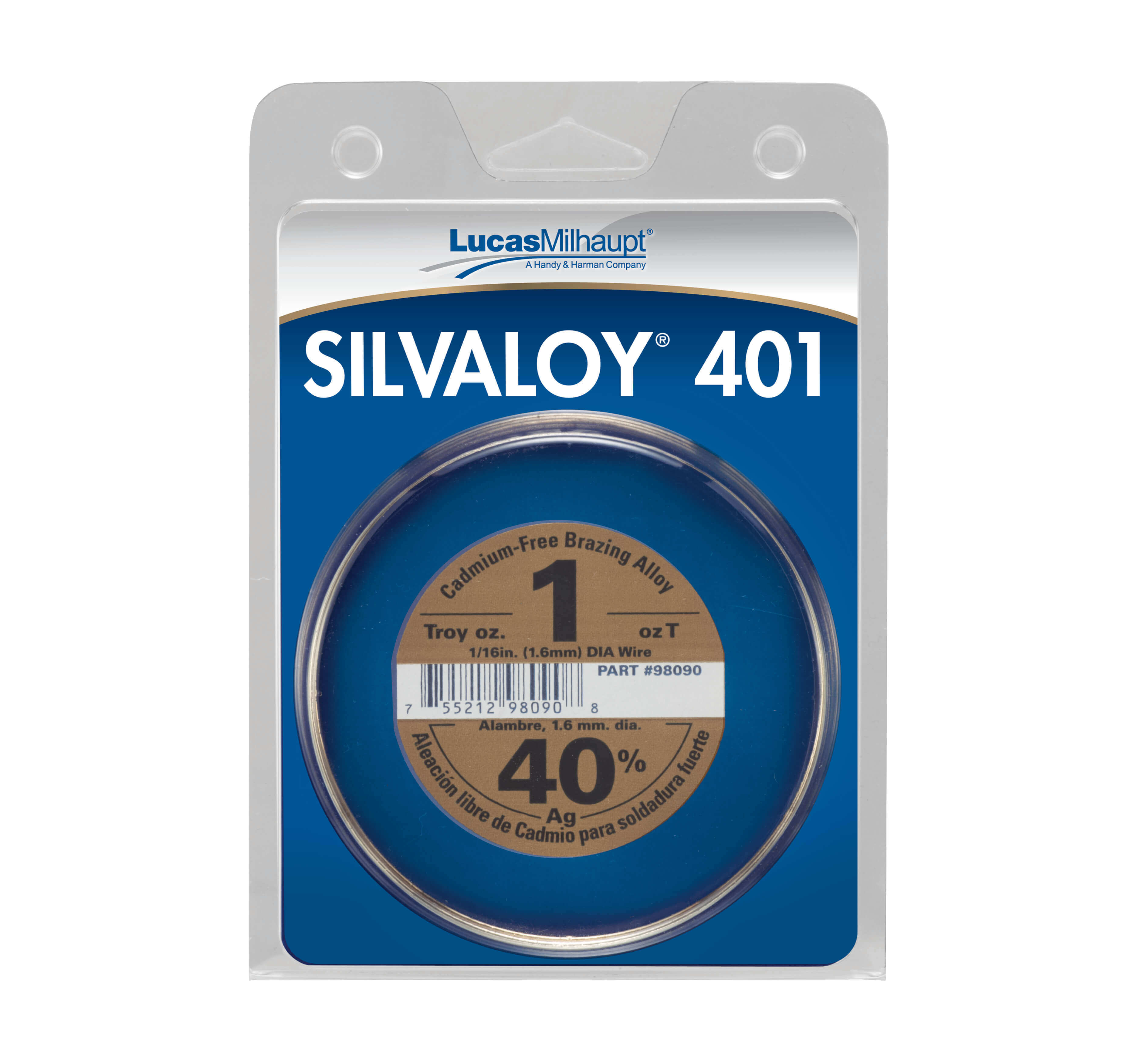

980901/16" (1.6mm) Dia X 1 Troy Oz Clam Shell6/BoxWireDiameter
