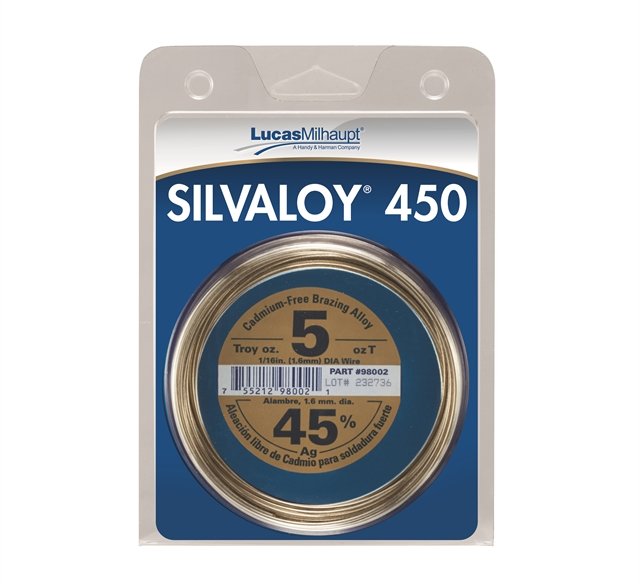

SILVALOY 450Play

SILVALOY 450

Product Overview

Silvaloy 450 is a sluggish general purpose alloy used for joining ferrous and non-ferrous metals. It is most useful for its color match on brass instruments, though it has also found use in tubular assemblies in ship construction and some aircraft engine coolers.
  • Can fill large joint clearances
  • Low temperature
  • Cadium-Free
  • Made in USA
Industry Applications:

Brass band instruments, brass lamps, aircraft engine coolers

Talk to an ExpertWhere to Buy

Product Specifications

Name:SILVALOY 450
Nominal Composition:Silver 45.00, Copper 30.00, Zinc 25.00,
Ag
45.00
Cu
30.00
Zn
25.00
Liquidus:1370 °F, 745 °C
Solidus:1225 °F, 665 °C
AWS:AWS: BAg-5

Related Parts

Product NameDimensionsCase QuantityOEM FormsOEM Range
980001/16" (1.6mm) Dia x 1 Troy Oz Clam Shell6/BoxWireDiameter
980021/16" (1.6mm) Dia x 5 Troy Oz Clam Shell6/BoxWireDiameter
980043/32" (2.4mm) Dia x 50 Troy Oz Knock-out Box1/BoxWireDiameter
980051/16" (1.6mm) Dia x 50 Troy Oz Knock-out Box1/BoxWireDiameter
980071/32" (0.8mm) Dia x 50 Troy Oz Knock-out Box1/BoxWireDiameter
