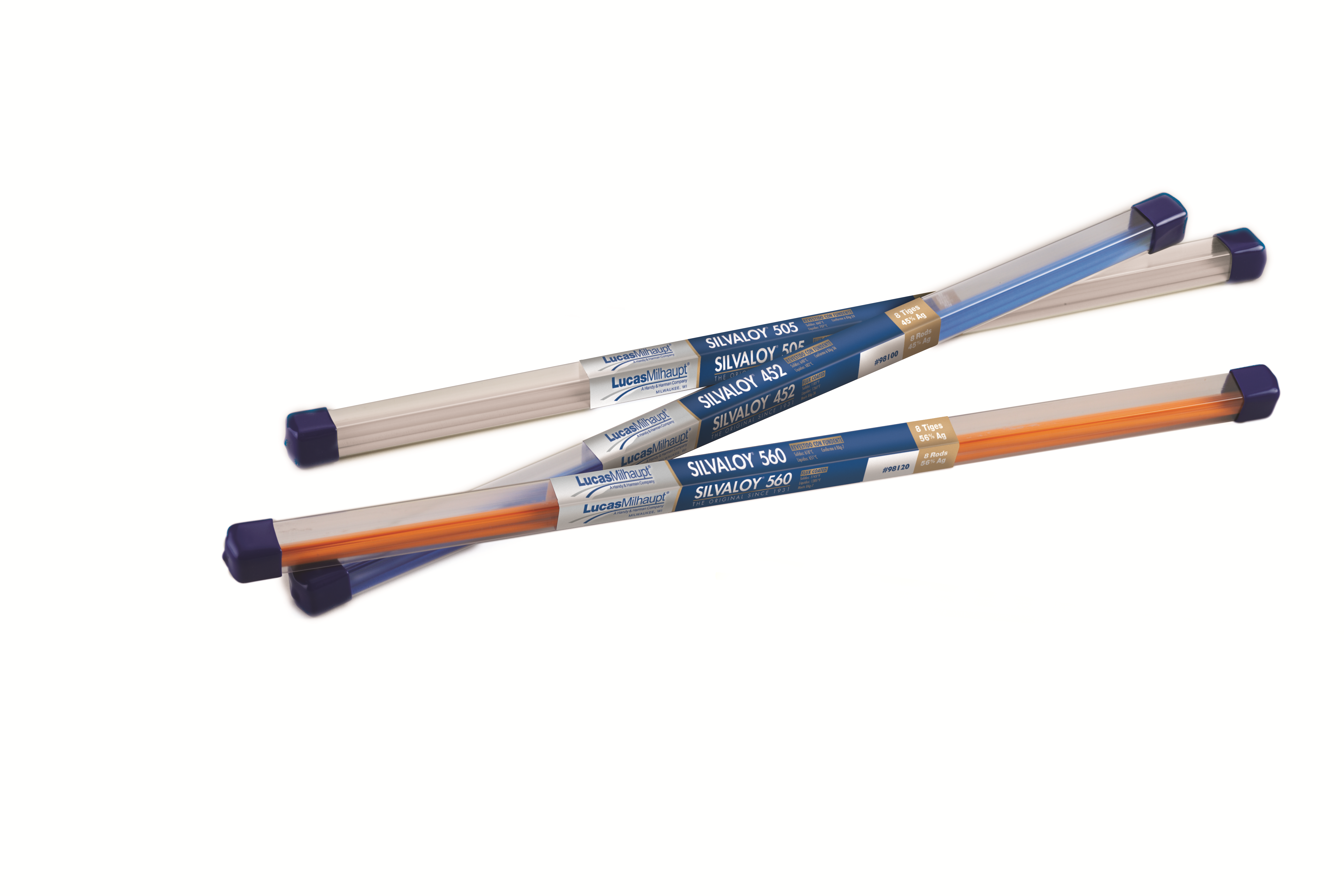

  • Lucas Milhaupt Flux Coated Rods

SILVALOY 560 FLUX COATED (Orange)

Product Overview

Silvaloy 560 Flux Coated is a flux coated Silvaloy brazing rod. In addition to bare and cored high silver alloys, we also offer rods that are coated with our general purpose Handy Flux.
  • Improved joint strength due to less flux inclusions
  • Minimizes post-braze cleaning
  • Reduces brazing cycle times
  • Made in the USA
Industry Applications:
Ferrous and non-ferrous alloys, food handling equipment, refrigeration tubing
Talk to an ExpertWhere to Buy

Product Specifications

Name:SILVALOY 560 FLUX COATED (Orange)
Nominal Composition:Silver 56.00, Copper 22.00, Zinc 17.00, Tin 5.00,
Ag
56.00
Cu
22.00
Zn
17.00
Sn
5.00
Liquidus:1205 °F, 650 °C
Solidus:1145 °F, 620 °C

Related Parts

Product NameDimensionsCase QuantityOEM FormsOEM Range
98120.062" Dia x 18" x 8 rods : plastic tube (1.6mm x 457mm)12/BoxWireDiameter

Related Industries

.

HVACR

Lucas Milhaupt offers the best brazing alloys, soldering products, and HVAC/R brazing equipment on the market. Learn how we help HVAC OEMs & Service Technicians improve their brazing process.

.

Medical

Our brazing experts educate medical device manufacturers on the safest brazing process and metal joining solution for their application.

.

Oil & Gas

Lucas-Milhaupt enables engineers in Oil & Gas to prevent cutter loss in the field and reduce alloy and flux usage through brazing process improvements.
